Younger mould factory in china especially make different type of cable ties mould more then 10years .we make cable tie mould ,arrowhead fir free push mount mould ,furr puller mould ,snap fit mould ,central clip mould ,half rond clip
Winged Push Mount mould ,7 dia clip mould, integrated twoway clip mould,oval clip with cable tie mould,integrated furr tree clip mould ,Double loop Zip Tie Handcuffs mould,UV Resistant Black Zip Tie mould ,Standard Winged Push Mount Cable Tie mould ,releasable cable tie mould ,spiral push mounted nylon cable ties mould, offset fir tree ,fir tree mount mould ,colored cable tie mould,black cable tie mould,zip tie tags mould,heavy duty cable ties mould,double loop cable ties mould,push mount cable tie mould, reusable cable ties mould,beaded cable ties mould ,serial number zip ties mould,fir tree clips mould,
scrivets panel mould ,nylon blind rivets mould ,screw grommet mould,snap latches mould. all type of cable ties mould we make .
Push Mount Cable Ties Information and usage :were designed for mounting bundling.use a push mount cable ties will be easy to attach a bundle to panels and holes .also easy to push the mount to the wall into a hole . Nylon Cable Ties suit for use in wire industry ,could use in a condition for the the temperature around-40°F to 185°F and can support the standard force tensile strength .for cable ties the usage is almostly use for mounting and bundling ,we usually use nylon 66material for cable ties ,Nylon 66material with a compact molecular structure ,could providde the better weathering and sunlight resistance, higher melting point, superior colorfastness and excellent abrasion resistance,with these structure information for cable ties ,we will make a excellent design for cable tie mould to make good precise quality for the injection mould
What is the material for fir tree cable ties ?
Fir tree cable ties are made of industrial strength 6/6 nylon material,, safe, environmentally friendly, high toughness, acid and corrosion resistant, fire rating 94V-2
fir tree push mount cable ties with push mount design,anti-aging, the gears are clear, good insulation and durability, withstanding temperatures from 40 ~ 185°F (-40 ~+85°C).

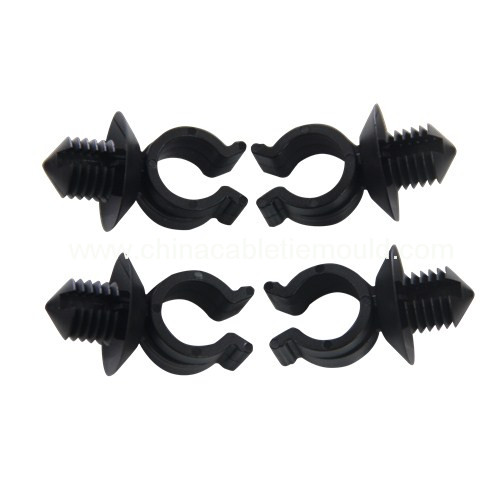

The head of fir tree mount cable ties adopts a fir tree design, which can be applied to substrates of various thickness or threaded single-sided apertures, push mounts lock securely into position through panel holes to enhance the stability of the installed pipelines and wires. The disc of the head can reduce dust and water falling into the aperture of the substrate and increase the stability.
Fir tree zip ties for retaining wires, cable, components or tubing away from panel or conductive chassis.can be used to bundle and sort various cables and wires, such as the fixing of wires of lighting, electronic toys, oil pipelines of mechanical equipment, etc. Widely used in household, construction industry, electronic industry, auto industry, cable and wire assembly, packaging and shipping, outdoor activities.
Except fir tree cable ties mould , we also have other types of cable ties mould：double loop cable ties mould, self-locking cable ties mould , heavy duty cable ties mould
Fir-Tree Mount Cable Ties Description
Cable ties with mountable head are not only for bundling and holding items together, but also for fixing at the boards. These cable ties are finding use in a wide range of other applications.
fir tree cable ties Features
One-piece fir-tree design with disc is similar to push mount cable ties but the disc can enhance the stability of fixing and avoid dust and water invasion
Additional cured tab below the buckle will fasten and maintain bundles on the axial
Fir-tree push mount design applied to various thickness of board or one-side thread hole
Applied to different industries such as automotive, aviation, white goods manufacture, and panel building
Our range of fir tree ties provide a variety of solutions for automotive fastening applications. The fir tree features allow manufacturers to mount and secure wire bundles to punched or threaded holes, and the disk portion provides adequate tension between the panels to prevent noise and vibration. To accelerate installation speeds, the fluted edges lock into panel holes the same way a pawl locks into strap teeth. We have a variety of parts to meet hole diameters from Ø6.3mm to 11.5mm in panel thicknesses from 0.6mm to 8.5mm. Some fir tree parts are also designed specially for threaded holes from M6-M10.
This is a Low Insertion Fir Tree, cable tie fastener. It offers an ergonomically advanced solution that provides a low insertion force while maintaining high retention characteristics. The unique LIFT™ flute geometry is designed specifically to meet automotive wire harnessing requirements. By fir tree mould technology with high quality ,Younger Mould factory have a strong engineer team with more then 15years experience to make high precise fir tree mould for clients
Precautions for the operation and use of nylon cable ties (cable ties)
the first:
Nylon cable ties are hygroscopic. Do not open the package before use. After opening the package in a humid environment, try to use it up within 12 hours, or repackage the unused nylon cable ties, so as not to affect the operation and use of the nylon cable ties. Tensile strength and rigidity.
Second: When operating and using, use the tightening force, which cannot exceed the tensile strength (tension) of the nylon cable tie itself
Third: The diameter of the object to be tied should be smaller than the diameter of the nylon cable tie, which is greater than or equal to the diameter of the nylon cable tie. It is inconvenient to operate and the strapping is not fastened. The remaining length of the strap after tightening should not be less than 100MM.
Fourth: The surface part of the object to be strapped must not have sharp corners
Fifth: When using nylon cable ties, there are generally two methods, one is to manually tighten it by hand, and the other is to use a cable tie gun to tighten and cut. When using a cable tie gun, pay attention to adjusting the strength of the cable tie gun. The physical condition depends on the size, width, and thickness of the cable tie to determine the strength of the cable tie gun.
Water boiling process for nylon cable tie
The boiling process of nylon cable ties, generally when the nylon cable ties are produced and taken from the injection molding machine, they need to be packaged, but there is a very important step to deal with before packaging, which is related to the quality of the nylon cable ties. The key link of Boiling water sounds a bit strange. Because nylon is an engineering plastic, it has certain hygroscopicity. If the surrounding environment is particularly dry, nylon will appear brittle. When used as a cable tie, because the individual is small, it is very easy to break, especially in winter. Therefore, our company added a process in the production of nylon cable ties, which is boiling water. Of course, some factories use water injection. Although water injection is relatively simple, the effect is not very good. Generally, it takes three days to a week for water injection to completely absorb the water. But if steam is used for steaming, the effect will be better. If it is winter, it is recommended to use a pressure tank to cook. The boiled cable tie will be more flexible in winter and will not break easily
