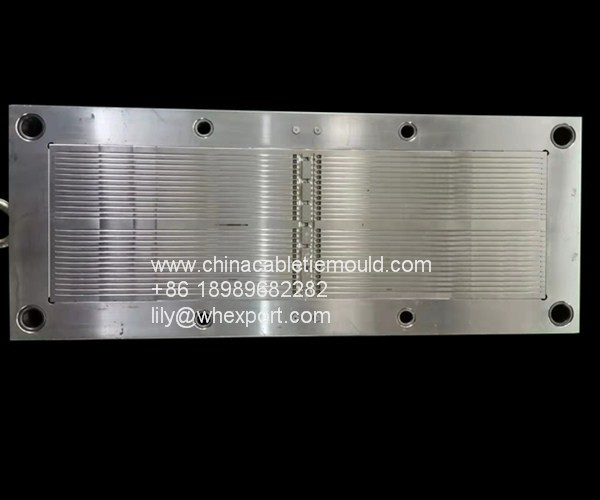

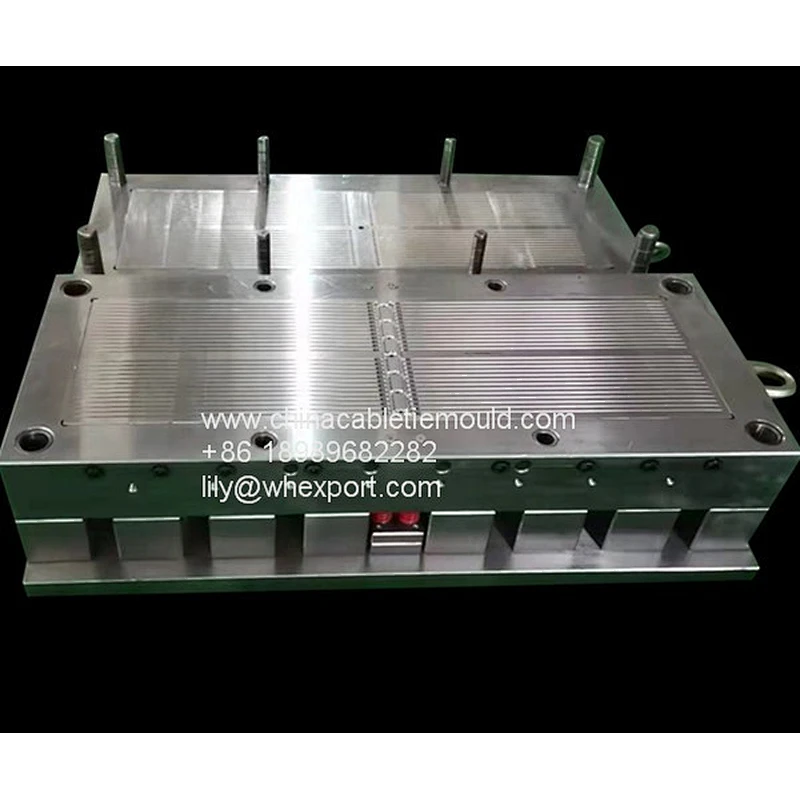

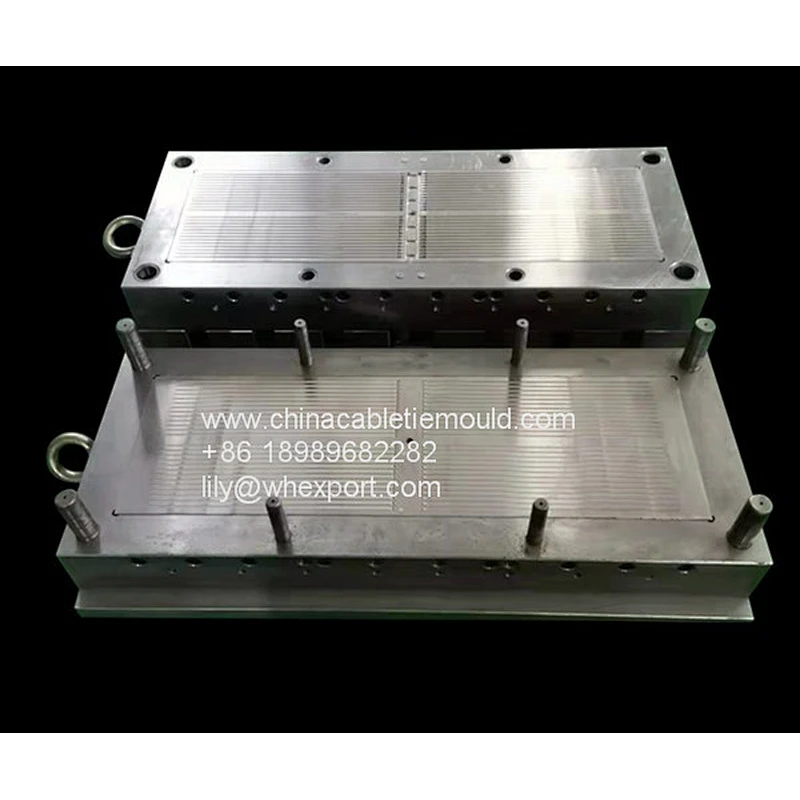

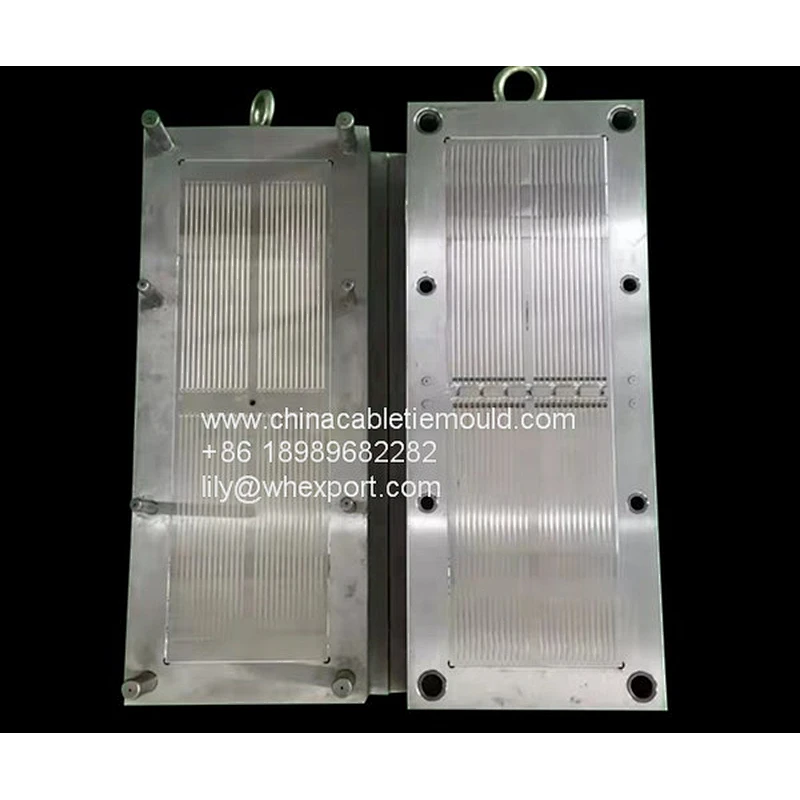

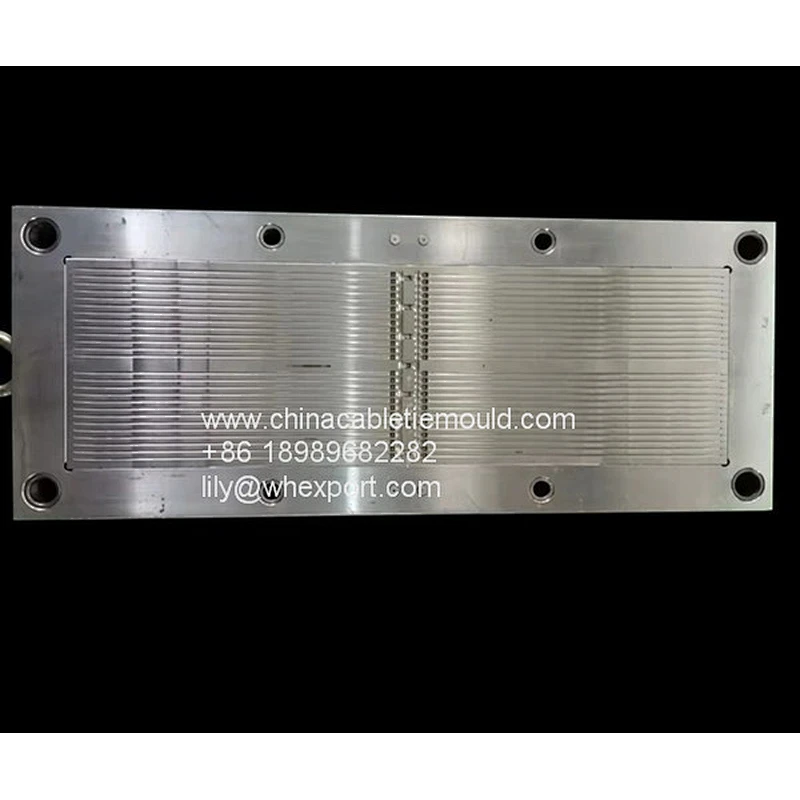

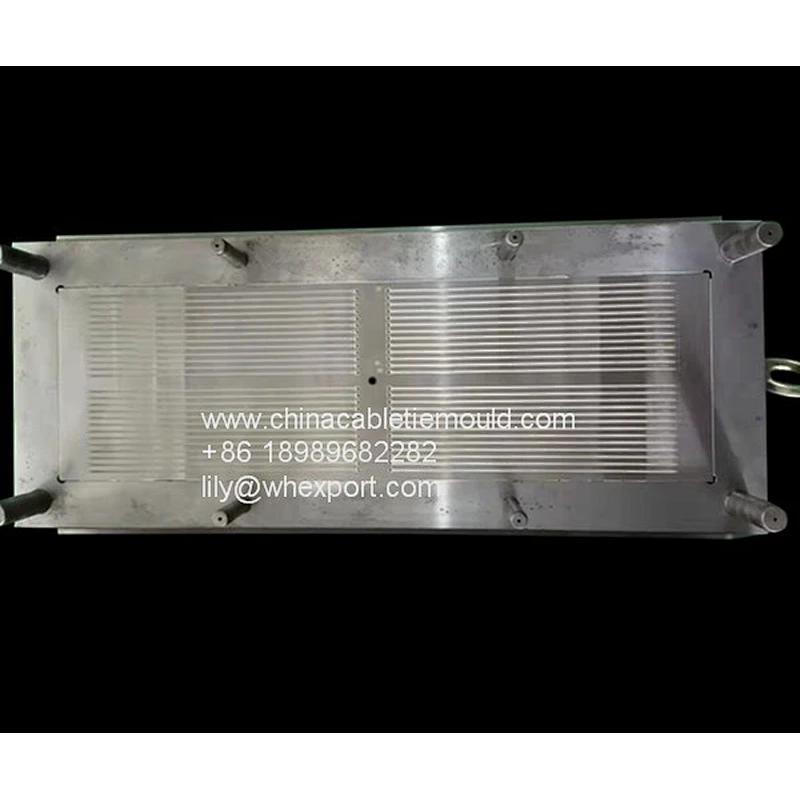

nylon cable tie mould

Why Need a specialized injection machine for nylon cable tie mould ?

Why Need a especially injection high speed machine to produce Nylon PA66 cable tie mould ?

So the reason cable ties are made in specialized machine is because the machine is set up specifically to run nylon ties, so the the tooling, the hot runners, the barrel and screw will be set up to run Nylon 6, the drier will keep the nylon to just the right moisture content, the take off equipment will be what's needed, the statistical process controller will be tuned for nylon cable ties etc.

Setting up a machine specifically for cable ties makes real sense.

That is the way to achieve efficiency, with dedicated machinery.

1. For cable tis product - Cable tie is very long and thin.It's hard for injection the material from the point for fulfill . During the material resin injection through the mould ,will need high pressure and high temperature to injection it ,But if your injection clamping force not strong enough will effect the clamping platens,So that is why need strong clamping force to clamping the mould,otherwise the material will leakage from the mould
As most of the cable tis mould is very long for the size and ties very thin ,for the moving and fix platen on machine, the machine will under huge pressure ,There will be a very big challenge for the machine clamping design .So that is why for produce cable ties need a very strong clamping force machine .

2. Temperature, For produce cable ties , the main material resin is Nylon 66, need high temperature for the nylon 66 around 300 degree . So we have to choice a especially nylon screw for the machine and barrel to avoid the high temperature and burn for the material .

3. Why need a high speed machine for produce cable ties mould ?
For produce cable ties ,the cycle time around 10 to 12seconds , otherwise due to high temperature the nylon material will easy to burn . so we have to use a high speed machine to produce nylon cable ties mould .

How to make the smoothly production for Nylon PA66 cable ties ?please feel free to contact us to ask questions .thanks

High speed plastic nylon cable tie making injection molding machine

China High speed plastic nylon cable tie making injection molding machine

Professional cable ties making machine

Whole machine Production line  for plastic nylon cable ties mould

Higher Speed injection machine production  for nylon  cable ties
High speed cable ties injection molding machine

Why Choose US?

The biggest cable tie mould exporter in China (not one of the biggest).
20 years experience in manufacture Cable tie mould.
10 years experience in export cable tie mould.
8 years experienced salesperson sincerely service for you.
Provide Turn key solution for cable tie manufacture(from injection molding machine to raw material).
